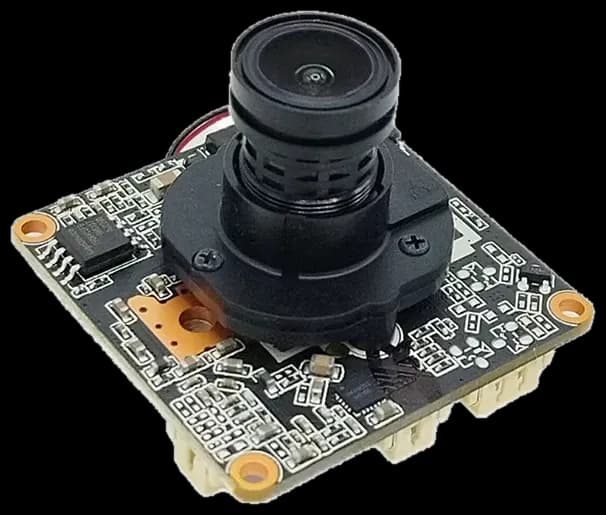

5MP IP camera SSC30KQ + Sony IMX335 (OpenIPC, up to 120 fps)

A compact FPV IP camera built on the SigmaStar SSC30KQ and a 5 MP Sony IMX335 sensor. This is the option to pick when grams and budget both matter: the single-core SoC draws less power and costs less than the larger models, while the picture is more than enough to fly confidently.

Smoothness over resolution

The IMX335 driver lets you trade pixels for frames. At 1280×720 the camera delivers 120 fps at around 60 ms latency — in fast flight that reads as noticeably sharper than 1080p@60 despite the lower resolution. When detail matters, the same sensor gives 1920×1080 at 60 fps.

• 1920×1080 @ 60 fps — maximum detail
• 1600×904 @ 80 fps — balance of clarity and smoothness
• 1424×800 @ 100 fps — fast flight
• 1280×720 @ 120 fps — racing, lowest latency

Low-light performance

The IMX335 belongs to the Starlight family, so the camera keeps producing a usable picture at dusk and under weak artificial light — where budget sensors have already turned to noise.

OpenIPC out of the box

The camera runs OpenIPC, the open firmware with Majestic and WFB-NG support. That means full control over bitrate, codec and radio-link parameters instead of a fixed set of vendor modes. H.265 or H.264 encoding with audio in the stream, bitrate from 15 Mbps.

Connection and what is in the box

Lens

The stock M12 2.8 mm lens gives a wide field of view — enough to see what is around the aircraft rather than a narrow slice ahead. The M12 thread is standard, so the lens is replaceable: fit a longer focal length when the task calls for it.

Video goes over 100 Mbps Ethernet; Wi-Fi is added with an external USB adapter. It runs on 12 V, and the power cable is included, so the camera can be wired up as soon as it arrives.

If you need more resolution and 4K, look at the dual-core SSC338Q model: 8MP IP camera SSC338Q + Sony IMX415. The SSC30KQ is the choice for low weight, low power draw and price.
